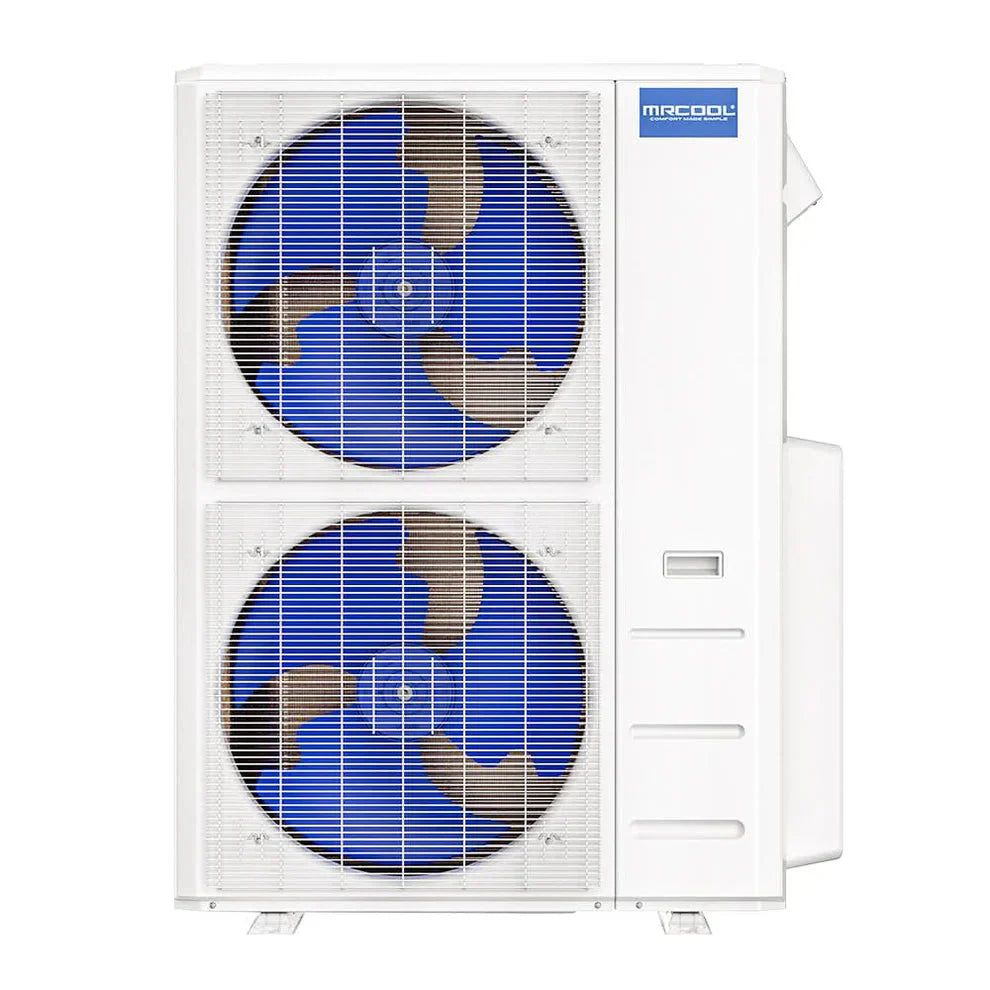

NEW R-454B Refrigerant MRCOOL DIY® 5th Gen 48,000 BTU Multi-Zone Mini Split Condenser 230V, DIY-MULTI6-48HP230D-O

MRCOOL® DIY 5th Gen 48,000 BTU 6-Zone Multi-Zone Mini Split Condenser – 230V

Model: DIY-MULTI6-48HP230D-O

Discover maximum comfort and total zone flexibility with the MRCOOL® DIY 5th Gen 48,000 BTU Multi-Zone Mini Split Condenser. Built for simple, fast DIY installation, this high-capacity 230V system supports up to six independent zones and a total connected capacity of up to 54,000 BTU. Ideal for larger homes, office spaces, or mixed-use buildings. Requires a minimum of 2 connected air handlers and is pre-charged with environmentally responsible R-454B refrigerant.

Key Features

• DIY-Friendly Installation: Quick Connect® line sets pre-charged with R-454B make installation easy—no vacuum pump needed
• Smart Controls: Compatible with SmartHVAC App, Amazon Alexa & Google Assistant for wireless comfort management
• Low-GWP Refrigerant: R-454B helps reduce environmental impact while enhancing system efficiency
• Gold Fin® Coating: Anti-corrosive treatment resists rust and coastal wear
• DIYPRO® Cable: Armored communication wire is UV and weather resistant—no conduit required
• Reliable Warranty: 7-Year compressor, 5-Year parts, and optional Limited Lifetime Replacement with MRCOOL® Care Program

System Specs

• Cooling Capacity: 48,000 BTU/h
• Heating Capacity: 50,000 BTU/h
• SEER2: Up to 21.5 (depends on connected air handlers)
• HSPF2-4: ~10.3 | HSPF2-5: ~8.2
• Power Supply: 208–230V, 60Hz, 1 Phase
• Minimum Circuit Ampacity: 30 A
• Maximum Fuse: 35 A
• Refrigerant Type: R-454B (Charge: ~147 oz)
• Line Set Sizes: 3/8″ Liquid x 5/8″ Gas
• Recommended Coverage: 1,800 – 2,400 sq. ft. (based on configuration and zone efficiency)

Compatible Air Handler Combinations (Max 54,000 BTU)

This condenser supports a wide mix of MRCOOL 5th Gen 6K, 9K, 12K, 18K, 24K, and 36K air handlers. Minimum of 2 air handlers must be connected. Total combined capacity must not exceed 54,000 BTU.
