Taking on an HVAC installation yourself might seem daunting, but the 5th Generation MRCOOL® DIY® 24K BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split Condenser is built specifically for easy, do-it-yourself setup. With no special tools or professional experience needed, this system is perfect for heating and cooling areas between 750-1,000 sq. ft. The pre-charged 25-foot QuickConnect® line set simplifies installation by eliminating the need for vacuuming, while the included DIYPRO® cable adds extra durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork hazards. With multiple control options, managing your comfort is effortless. Adjust settings using the included remote, the SmartHVAC app on Apple or Android devices, or go hands-free with voice control via Amazon Alexa and Google Assistant. For homes near the coast, the Gold Fin Condenser enhances corrosion resistance, ensuring lasting performance. This system is packed with features to maximize efficiency and convenience. The Timer function helps regulate energy use, while Auto mode maintains your preferred temperature with no extra effort. If power is lost, the unit automatically restores previous settings. Plus, the anti-mildew function helps prevent moisture buildup inside the air handler. Engineered for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, including a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty. Combining user-friendly installation with advanced technology, this system delivers lasting comfort with ease.

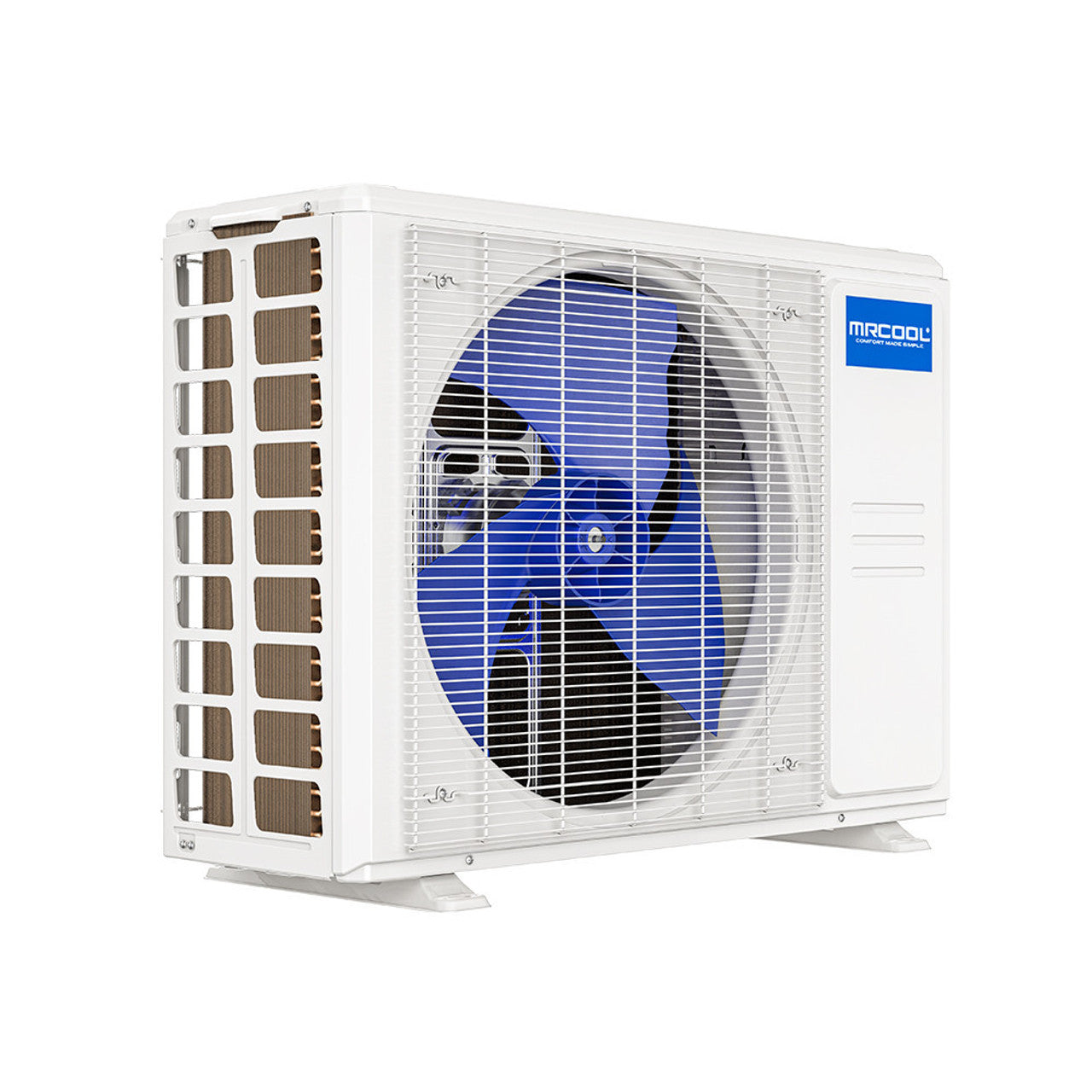

MRCOOL® 24k DIY 5th Generation Mini-Split Condenser 230v R454B - DIY-24-HP-C-230D25-O | HVAC System Accessory
Attributes :
-
Cooling Capacity: 23,000 BTU
-
Heating Capacity: 23,000 BTU
-
SEER2: 22.7
-
EER2: 12.7
-
HSPF2 (Region 4): 9.5
-
HSPF2 (Region 5): 7.1
-
Tonnage: 2 Ton
-
Voltage: 208/230V | Phase: 1 | Cycle: 60 Hz
-
Max Fuse Breaker: 25A
-
Min Circuit Ampacity: 24A
-
Compressor Type: DC Inverter Rotary
-
Refrigerant Type: R-454B (Low GWP)
-
Refrigerant Charge: 67.37 oz
-
Zone Capacity: Single-Zone
-
Line Set Length: 25 ft (Max: 75 ft)
-
Line Sizes: 3/8″ Liquid | 5/8″ Suction
-
Wi-Fi Enabled: Yes
-
App Compatibility: iOS & Android
-
Modes: Fan-Only, Auto Cool, Quiet Mode
-
UL Listed | AHRI Certified | ENERGY STAR® Certified
-
Proposition 65 Compliant
-
Sound Rating: 58.5 dBA
-
Color: White
-
Net Dimensions: 37.24” W × 16.14” D × 31.89” H
-
Net Weight: 122.8 lbs
-
Shipping Dimensions: 42.91” W × 19.88” D × 37.01” H
-
Shipping Weight: 155.64 lbs
